Lean Condition | 2003 Chevrolet Tahoe | 5.3

2003 tahoe big 300x240 Photograph

2003 Chevy Tahoe

This case study will involve a couple different and effective ways that I use to diagnose fuel trim issues. I’m going to use a 2003 Chevrolet Tahoe with a 5.3 liter with just over 60,000 miles on it I did for a used car lot. This Tahoe was setting a P0171, P0174, and a P0300. We all know the P0300 is misfire code which is probably being caused by a lean condition that set the other two codes. The P0171 and P0174 code set criteria is that the long term fuel trim cell must be above 23% for 6 seconds.

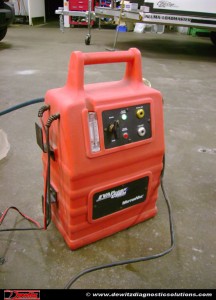

2003 tahoe smoke big 216x300 Photograph

Motorvac EVAP Smoke Machine

Three things came to mind when I saw these codes. A mass airflow sensor problem, plenum to intake gasket leak, or a fuel supply issue. The first thing I did was hook up the Tech 2 to look at the data stream, especially MAF data and fuel trims. At idle the MAF data looked to be in the ball park at around 4.5 g/s at around 1000 ft. above sea level on a GM 5.3 liter. Now be forewarned that you can have a faulty MAF and still be reading very close to what a good one would be. I saw that it was close to what I would expect so I moved on to the fuel trims. The long term fuel trims at idle were at +10 – +24 showing me that the PCM was adding fuel. This engine usually has -7 ltft at idle. I then revved the engine to 2500 rpm and the fuel trim went down to around +8 – +10. Since the ltft didn’t go down that far, I was thinking it might be a MAF or fuel supply issue. A small vacuum leak usually doesn’t affect ltft at 2500 rpm to much, if at all from my experience.

2003 tahoe idle big 300x240 Photograph

5.3 Fuel Trim Data at Idle

I forgot my fuel pressure gauge and was really hoping I didn’t have to pull this out of the shop and bring it on a test drive. Since I couldn’t check fuel pressure I pulled the MAF out and checked to see if it was dirty. It wasn’t dirty at all but I sprayed it down anyway.That didn’t affect my fuel trims at all so I decided to smoke the intake just to see since they are known to leak and I could still keep the truck inside. As I filled the intake with smoke I waited to see if any would rise from below the plenum and it eventually did.

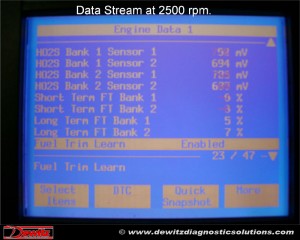

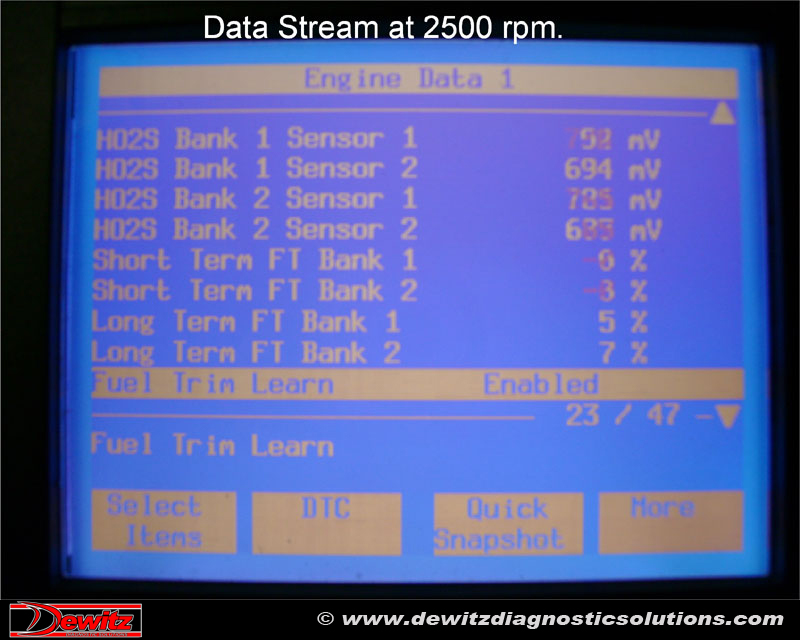

2003 tahoe 2500rpm big 300x240 Photograph

5.3 Fuel Trim Data at 2000 RPM

Two ports, one on each bank, were smoking a little bit but I was expecting a bigger leak for how high the fuel trims were. Dang it! I wasn’t convinced that the small intake leaks were going to be the whole problem, so I decided to check my fuel supply and MAF sensor another way but I had to go on a test drive. On the test drive I watched my ltft at a steady cruise and they were around 0, this showed me thatthe intake leak may after all be the onlyproblem. I then did a couple of full throttle runs and my MAFshowed over 100 g/s which shows me the MAF is probably good along with the engine load pid hitting 100% which also tells me the MAF is reading correct at full throttle and the engine is breathing well. For more GM engine load pid information

2003 tahoe plot big 300x240 Photograph

5.3 O2 Sensors Full Throttle

visit www.flatrater.com. I then graphed my two front O2 sensor voltage pids. They both pegged over .8v at full throttle which pretty much put the fuel supply issue to rest. I now could confidently say that the plenum gasket leak was the only issue with this Tahoe even though my ltft at 2500 rpm didn’t go down as much as I expected for the two vacuum leaks being as small as they were. Also check this case study for more info.
